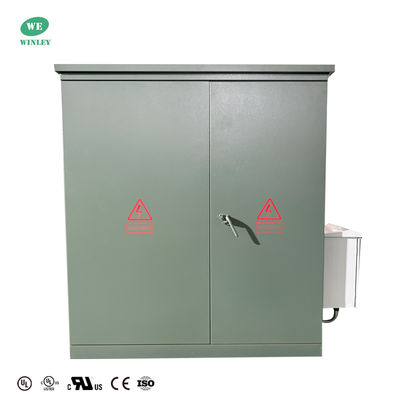

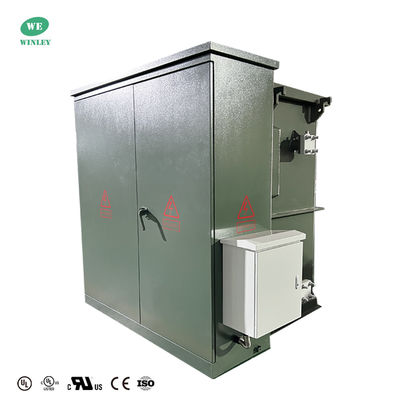

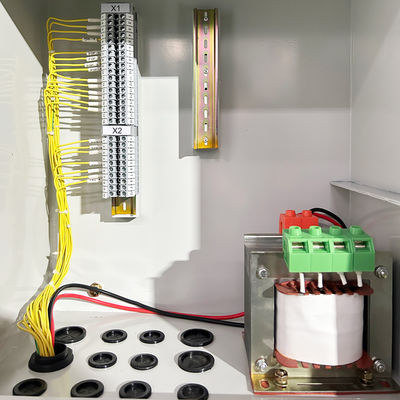

3 Phase Pad Mounted Transformer Distribution Power Oil Immersed 3750Kva Step-Down 34500V To 480Y ANSI IEEE DOE 2016  With UL/cUL Certified

A padmount transformer is a ground-mounted utility distribution transformer, which usually is housed in a locked metal cabinet,situated on a small concrete pad. They are usually manufactured in power ratings from around 75 to around 5000 kVa and often includes built-in fuses and switches. A typical enclosure includes a tank for holding the core/coil assembly of the padmounted transformer immersed in oil or the like, and a wiring cabinet having high and low voltage wiring compartments for enclosing the high and low voltage bushings, respectively, of the transformer, etc.

Why choose us

• WINLEY produces a full range of three phase pad mounted transformers with a capacity of 45kva-5500KVA and a voltage of up to 34.5KV. The products meet or even exceed the standards of DOE 2016, IEEE/ANSI, CSA, IEC, NEMA, etc.
• The three phase pad mounted transformer produced by WINLEY has obtained UL/cUL certification (Certificate Number: UL-US-2431836-0, UL-CA-2423202-0), and can apply for UL (partner authorization) according to customer requirements.
• Our products are exported to North America, South America, the Philippines and other places in large quantities. We have rich experience in design and production, professional and reliable after-sales service, and can deliver goods quickly within 7-35 days.

Three Phse Pad Mounted Transformer  Main data

Technical drawings

Product Structure

• 60 Hz operation.
• 65°C average winding rise.
• Radial & loop feed arrangements.

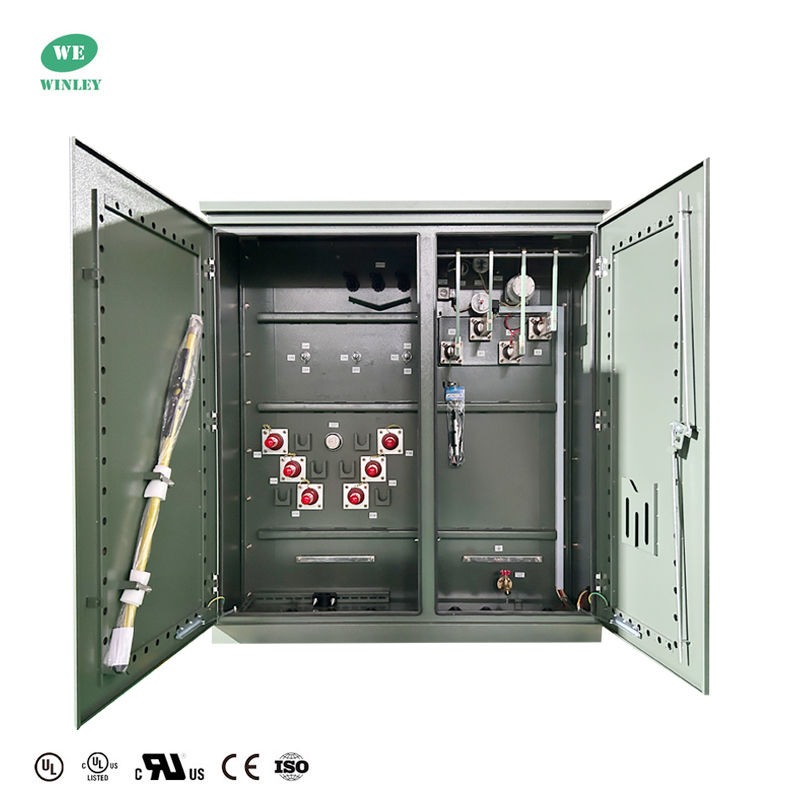

• Dead and live front type of HV terminals.
• HV BIL 45 – 150 kV (Dead Front) 200 kV (Live Front).
• LV BIL 30 – 60 kV.
• Three-point latching of low-voltage door.
• High-voltage door, which can be opened only after the low-voltage door is opened.
• Rigid steel partition.

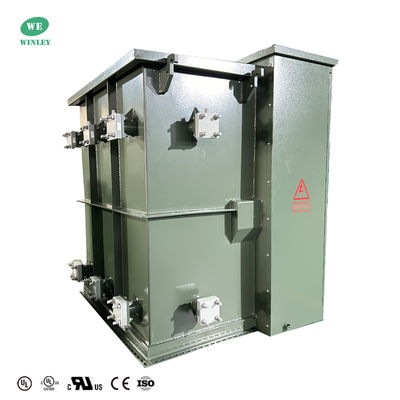

• Transformer tank welded from cover to base.
• Permanent nameplate.
• One-inch NPT pipe cap filling provision.
• ANSI tank ground pads.
• One-inch drain valve and sampler.
• Automatic pressure-relief valve (35 SCFM).
• Tap changer with (2) 2.5% full capacity taps above and below nominal.
• One 10”x18” (or 14”x25”) hand hole in transformer tank cover.
• Painted olive-green color (Munsell 7GY 3.29/1.5).
• Designed, manufactured and tested in accordance with the latest ANSI standards

Factory Tests

• Winding Resistance Test
• Insulation Resistance Test
• Voltage Ratio Error Test
• Short-circuit Impedance Test
• No-load Loss (Wattage) Test
• Load Loss (Wattage) Test
• Induced Voltage Withstand Test
• Separate Source Voltage Withstand Test
• Pressure Integrity Test Test

Specification

Production process

FAQ

1. Q: Can I have a sample order?

A: Yes, we welcome sample order to test and check quality.

2. Q: What is the lead time?

A: Mass production time 15-25 days.

3. Q: How long is the warranty?

A: 24 monthes from B/L. If there are any accessory problems,just provide the photos of damaged accessory,then we will provide free service. According to the number of products,we will provide easily damaged accessories for free. we also can provide technical support if you need.

4. Q: Is OEM/ODM available?

A: Yes,it is! We are manufacturer with our own R&D team, we can customize products according to customer's drawing or requirements.

Customized services:

a. Customized color and special function.

b. Customized box.

c. Print customer's logo.

d. Your other ideas about product, we can help you design and put them into production. The above customized services must be confirmed before production.

5. Q: How to control the products quality?

A: Our company owns the core technology ,all kinds of products hold CE certificate. We have professional engineers. Workers are strictly required to make products according to the drawings. Each process has technical instructors.The QC supervisors will regularly inspect the production. We will do products performance tests during production, and comprehensive quality tests when the products is completed.
