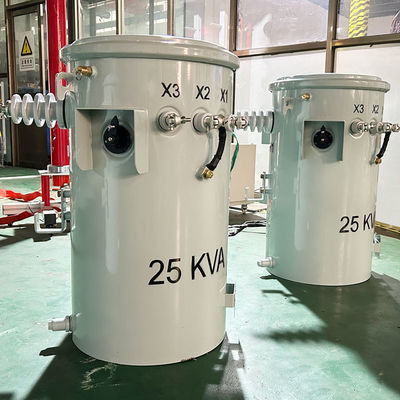

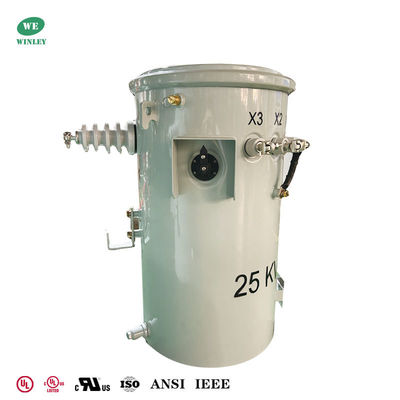

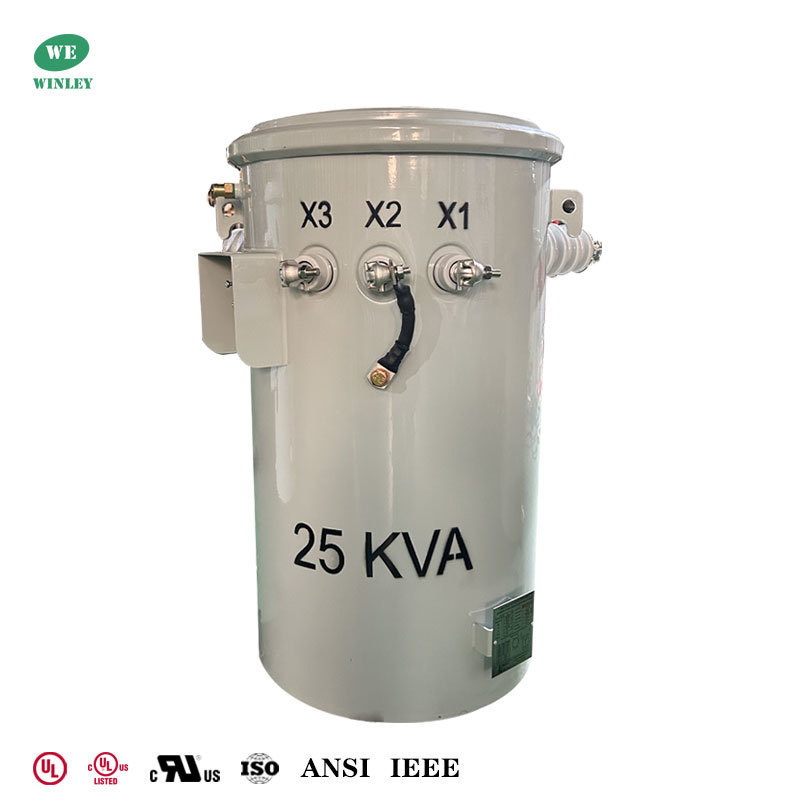

25Kva Single Phase Pole Mounted Distribution Transformer Oil-immersed 7.2KV To 120V UL/cUL Listed

A compact, reliable 25 kVA pole‑mount overhead distribution transformer with a 7200V delta primary and 120/240V dual‑winding secondary. Built with copper windings and non‑PCB mineral oil (ONAN) cooling, it meets DOE 2016, CSA and ANSI/IEEE standards, delivers high efficiency 99% .

WINLEY's pole-mounted transformers, UL/cUL certified, offer 10-333 kVA capacity and exceed ANSI, IEEE, CSA, IEC60076 standards. With decades of expertise, we deliver full technical support and export globally to North/South America and Southeast Asia. Our safe, stable, and efficient designs cut operational costs for reliable power solutions.

Pole Mounted Transformer Main data

Technical drawings

Sinlge Phase Pole Mounted Transformer Structural Features

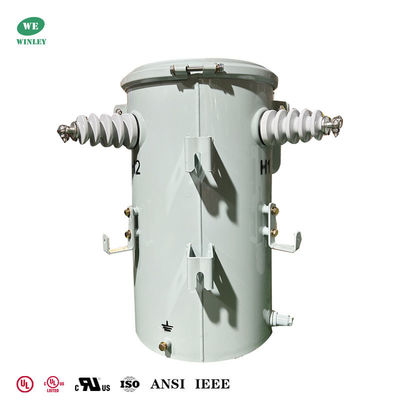

1. The tank lids have high-voltage porcelain bushings that come with ring terminals, which can accommodate either aluminum or copper cables.
2. The circular sewing structure of the tank cover ensures even stress distribution and reliable sealing.
3. The ring bolts on the tank wall serve as the low-voltage bushing and terminal and are tin-plated.
4. This item comes with a pressure relief valve that is capable of self-sealing.
5. According to ANSI standards, the transformer's suspension hooks at the top and bottom comply.
6. The ground terminal on the tank is a ring bolt ground terminal.

Pole Mounted Transformer Specifications

Production process

FAQ

1. Q: Can I have a sample order?

A: Yes, we welcome sample order to test and check quality.

2. Q: What is the lead time?

A: Mass production time 15-25 days.

3. Q: How long is the warranty?

A: 24 monthes from B/L. If there are any accessory problems,just provide the photos of damaged accessory,then we will provide free service. According to the number of products,we will provide easily damaged accessories for free. we also can provide technical support if you need.

4. Q: Is OEM/ODM available?

A: Yes,it is! We are manufacturer with our own R&D team, we can customize products according to customer's drawing or requirements.

Customized services:

a. Customized color and special function.

b. Customized box.

c. Print customer's logo.

d. Your other ideas about product, we can help you design and put them into production. The above customized services must be confirmed before production.

5. Q: How to control the products quality?

A: Our company owns the core technology ,all kinds of products hold CE certificate. We have professional engineers. Workers are strictly required to make products according to the drawings. Each process has technical instructors.The QC supervisors will regularly inspect the production. We will do products performance tests during production, and comprehensive quality tests when the products is completed.
