2500kva Cast Coil Transformer 22kv To 433v Dry Type Epoxy Resin Electrical Power Transformers

Marka Adı:	WINLEY
Model Numarası:	SCB10-2500/22
Adedi:	1 Adet
fiyat:	$5000-$100000
Paketleme Ayrıntıları:	kontrplak durumda
Ödeme Şartları:	T/T

Ayrıntılı Bilgiler

Ürün Tanımı

Ayrıntılı Bilgiler

Menşe yeri:

Sertifika:

CE,ISO

döküm bobinli transformatör

Nominal kapasite:

2500KVA

Birincil Gerilim:

22000V

İkincil Gerilim:

Soğutma Yöntemi:

AN/AF

Yalıtım sınıfı:

F (155°C)

Sıcaklık Artışı:

100°C

Standart:

AS60076

Yetenek temini:

1000set/ay

Vurgulamak:

2500kva Cast Coil Transformer

Epoxy Resin Cast Coil Transformer

Ürün Tanımı

2500kva Cast Coil Transformer 22kv To 433v Dry Type Epoxy Resin Electrical Power Transformers AS60076 Standard

Cast coil transformers are the ideal solution for voltage distribution in harsh environments with airborne dust or high humidity. The windings are vacuum-cast into a solid block of epoxy resin, providing the highest level of protection for the windings.

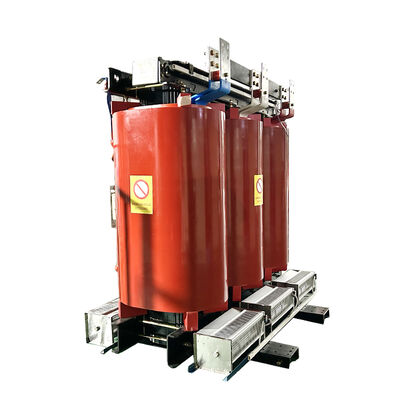

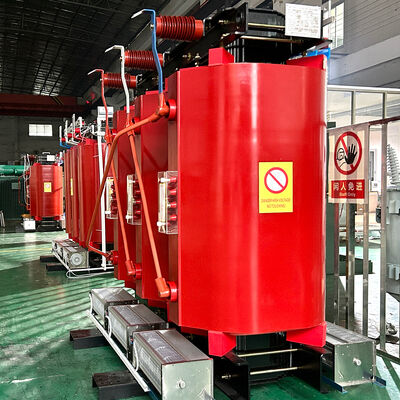

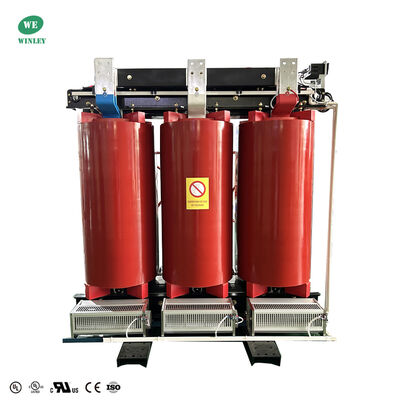

Product Photos

2500kva Cast Coil Transformer 22kv To 433v Dry Type Epoxy Resin Electrical Power Transformers 0

2500kva Cast Coil Transformer 22kv To 433v Dry Type Epoxy Resin Electrical Power Transformers 1

2500kva Cast Coil Transformer 22kv To 433v Dry Type Epoxy Resin Electrical Power Transformers 2

winley electric’s cast coil transformers are designed, built, and tested in accordance with the highest industry standards including NEMA, ANSI, DOE, AS60076,and IEEE as applicable.

Main data

No.	Particulars	Unit	Specification	Remark
1	Type	~	cast resin, dry type
2	Rated capacity	kVA	2500
3	No. of Phase	~	3
4	Primary voltage	V	22000	Delta
5	Secondary voltage	V	433	Wye
6	Tapping type	~	off-circuit tapping
7	Tapping type	%	±2*2.5%
8	Cooling method	~	AN/AF
9	Rated frequency	Hz	50
10	Vector group	~	Dy1
11	Insulation class	~	F
12	Temperature rise	K	100
13	Standard	~	AS60076

Technical drawings

2500kva Cast Coil Transformer 22kv To 433v Dry Type Epoxy Resin Electrical Power Transformers 3

Features

Self Cooled (AN/AF)
50/60Hz
Aluminum/copper Windings
100°C Temperature Rise
Primary taps +/-2 x 2.5%
Terminal Bus Stubs Suitable For Cables
NEMA 2, 3R, 4, 4X Enclose
Dial or Digital Thermometers
Anti-Condensation Strip Heaters
Anti-Vibration mounting to reduce transformer hum (sound level)
Distribution, Intermediate or Station Class Surge Arresters
Provision for Buss Duct Entry
Fully Insulated Buss
Mimic Buss

2500kva Cast Coil Transformer 22kv To 433v Dry Type Epoxy Resin Electrical Power Transformers 4

Cast Coil Transformer Benefits

Low to no maintenance
Self-extinguishing insulation system
Can be used in a variety of environments
Overload capable and fan options for extra cooling
Lower installation costs than oil-filled transformers

Production process

2500kva Cast Coil Transformer 22kv To 433v Dry Type Epoxy Resin Electrical Power Transformers 5

2500kva Cast Coil Transformer 22kv To 433v Dry Type Epoxy Resin Electrical Power Transformers 7
